The following guide provides information on how to use The Modal Shop (TMS) 485B39 hardware with m+p Analyzer for acquisition.

Instructions to Configure the TMS 485B39

Step 1: Connect the TMS 485B39 to the PC

• Physically connect the unit
• Ensure drivers are installed (if needed)
• Ensure that the unit is available under audio devices
  • Open Start Menu
  • Type "Sound" and open Sound Settings from search results

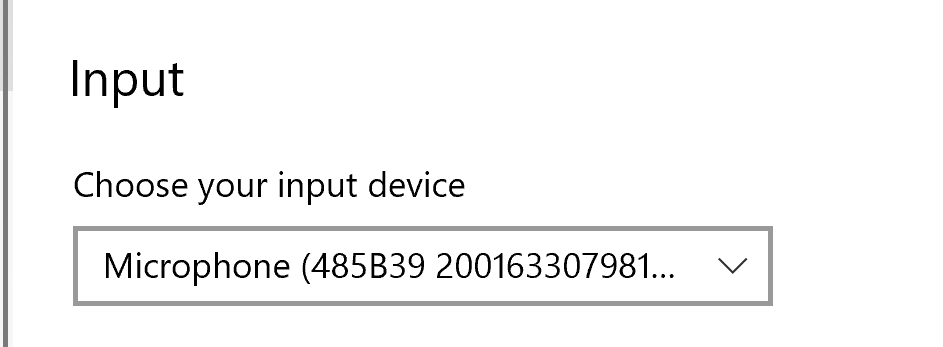

  • Under Input, see that the 485B39 is available as shown below


Step 2: Set the Audio Device

• Close m+p Analyzer, if open.
• Open the m+p Analyzer Hardware Selector program (Start Menu -> m+p Analyzer X.X.X.XXX -> Hardware Selector)
• Choose Audio Device
• Click Select Audio Device box

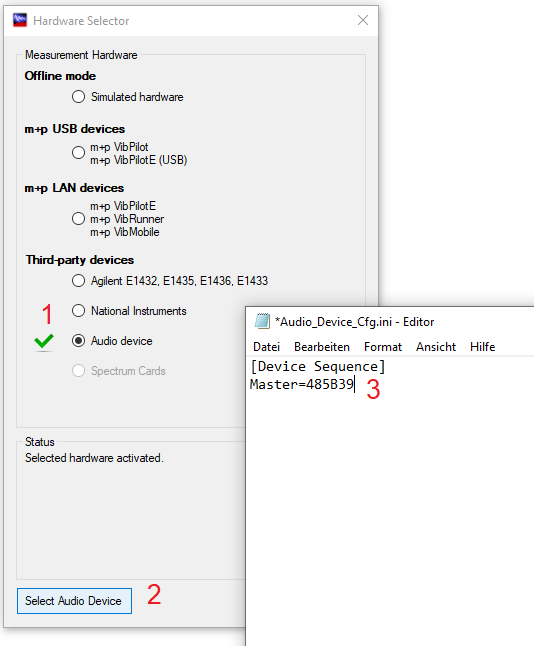

• Replace "Microphone" with "485B39" as shown below
• Save and Close Notepad
• Select OK to close the hardware selector






Step 3: Check the Device in m+p Analyzer

• Open m+p Analyzer
• In the Transducers tab of the Configuration menu, the 485B39 should appear in the Modules column.

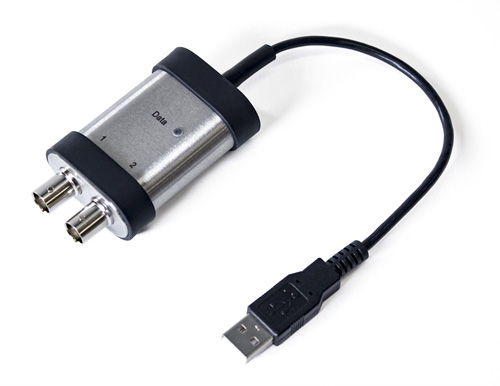

The TMS 485B39 offers 2-channels of ICP (IEPE) sensor signal conditioning with BNC inputs.

For more information, please visit the vendor page: https://www.modalshop.com/ID=1252
