Instructions to Connect Multiple VibPilot-E Hardware to VibControl

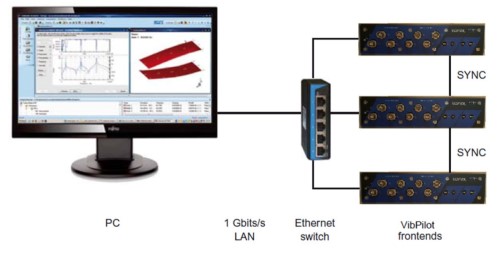

1. Use CAT 6 cables to connect each VibPilotE’s LAN port to the switch. Connect switch to PC LAN port. Be sure PC network card supports 1Gbps connection.

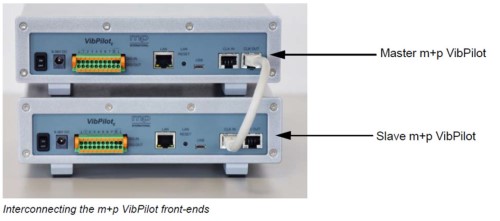

2. Connect “Clock Out” of the master VibPilotE with “Clock In” of the slave VibPilotE.
3. Set dedicated Network Adapter IP address

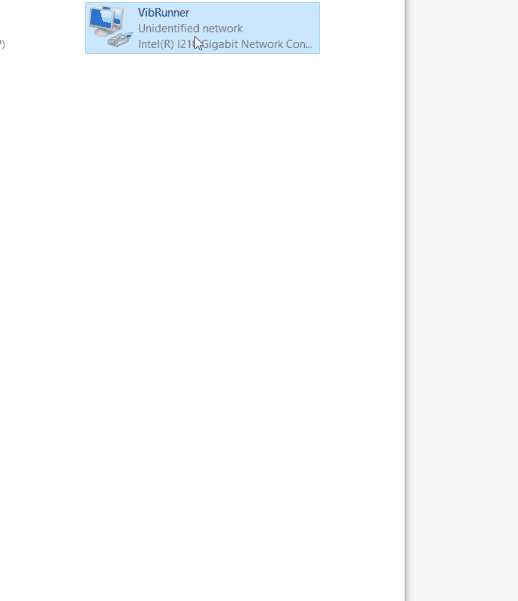

   1. Start Menu -> View Network Connections
   2. Double-click on the relevant network card
   3. Select Properties
   4. Double-click on Internet Protocol Version 4 (IPV4)
   5. Select Use the Following IP Address and enter 192.168.168.1
   6. Enter the subnet mask of 255.255.255.0
4. Run Firmware update.
   1. Go toC:\VcpNT\VP24_Update\firmware.
   2. Unzip firmware folder – Password to unzip is “firmware”
   3. Run VibPilotE_Firmware_X_X_X_XXX.exe,

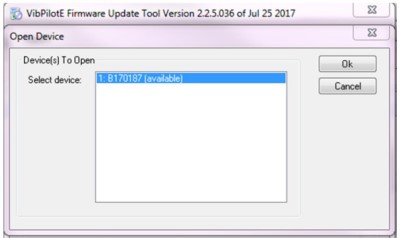

   4. highlight all serial numbers and select “Update device firmware now”

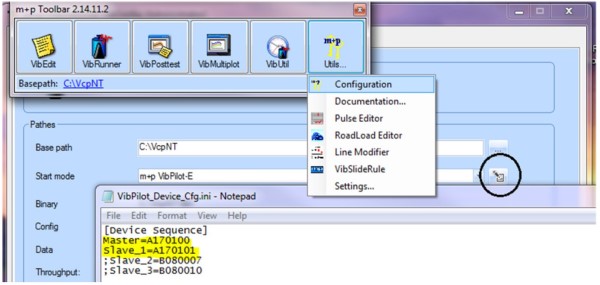

5. Enter VibPilotE Serial Numbers in VibPilot_Device_Cfg.ini file. Delete semicolon in front of active devices.


6. Start VibControl Service.

   1. In the VibConfig window shown above, choose m+p VibPilotE as the start mode.

   2. Select Start Service



Note: The network switch and static IP of the network card create an isolated network.
Do not connect printers or other network devices to the same switch or NIC!

Animation - Changing the IP Address:
