Show or Hide tabs in m+p Analyzer Configuration Menu

Created by Dale Schick, Modified on Mon, 21 Mar, 2022 at 3:20 PM by Dale Schick

Sometimes it can appear as if tabs are missing in the mpAnalyzer configuration menu. Don't worry, they're just hiding!

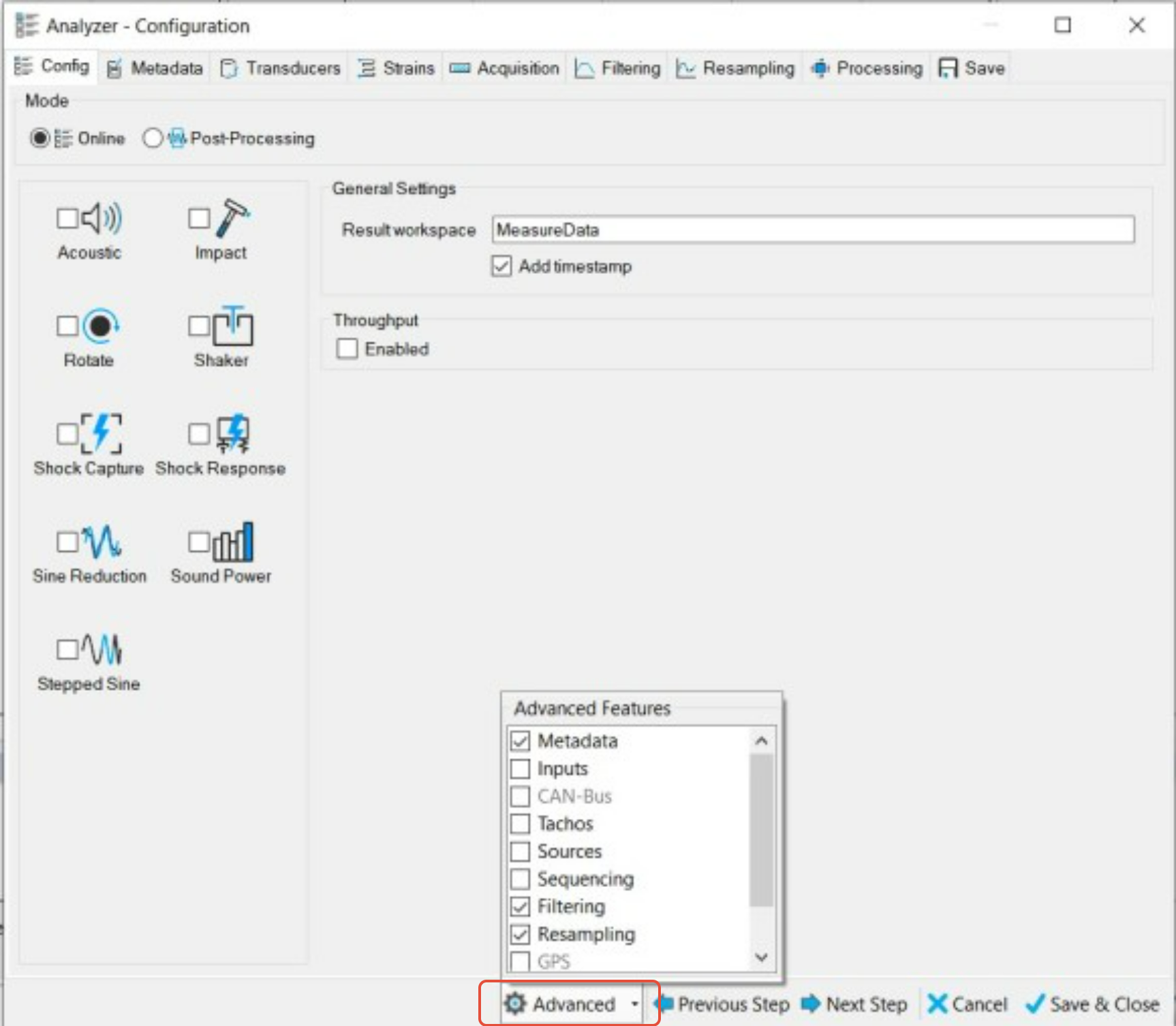

Instructions to Hide/Show Configuration Tabs in m+p Analyzer

Select the Config button
Select the Advanced drop down menu
Select the check-box for items you wish to show or Deselect for those you wish to hide.
Selected tabs will appear in the Analyzer - Configuration wizard.
Save & Close to keep the tabs available next time the Config menu is opened.

Tabs you can hide/show:
Metadata
Inputs
CAN-Bus
Tachos
Sequencing
Filtering
Resampling
GPS
Automation

TIP: Hiding configuration tabs can be a good way to prevent changes to critical setup files. Just hide the tabs and save the project file for future use!
